Description

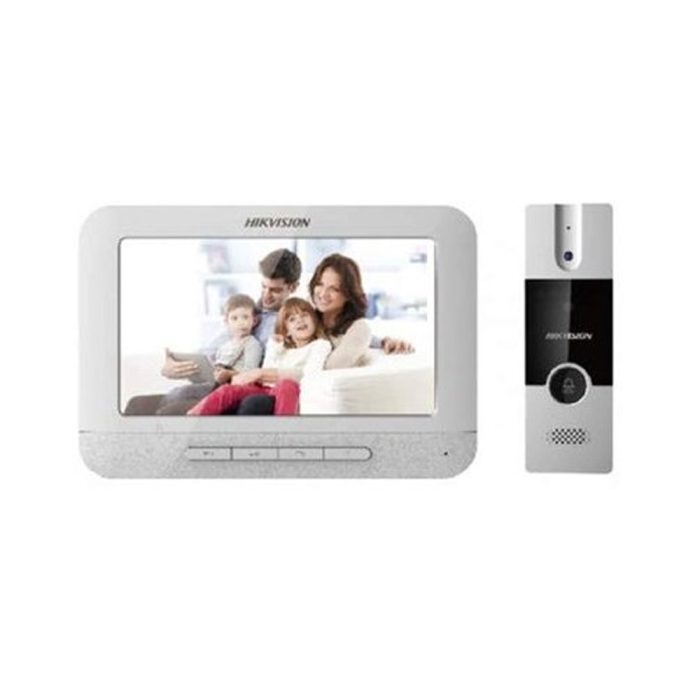

Villa Analog Kit
- Analog Kit with picture storage function for villa or house, only one call button.
- Kit including DS-KB2411-IM and DS-KH2220 -S, 5-meter 4-wire cable, and other accessories.
Specification
Technical Specifications
| Brand | Hikvision |
| Model No | DS-KIS204T |
| Model Name | Video Door Phone |
| Camera | 1/4" CMOS |
| Resolution | 720 × 576 |
| Video Frame Rate | PAL: 25 fps |
| Audio Input | Built-in Omnidirectional Microphone |
| Audio Output | Built-in Loudspeaker |
| Audio Quality | Noise Suppression and Echo Cancellation |
| Material | Aluminum Alloy |
| Power Consumption | Max. 5W |
| Working Temperature | -30° C to +60° C (-22° F to 140° F) |
| Dimension | 128 mm × 42 mm × 24.8 mm |
| Display Screen | 7-Inch Colorful TFT LCD |
| Display Resolution | 800 × 480 |
| Operation Method | Physical Button |
| Four-Wire Interface | 4 Four-Wire Interfaces 1-ch Video Input, 1-ch Audio Input/Output, 1-ch Power Supply, 1-ch Grounding |
| Power Supply | 12 VDC |
| Warranty | 2 Years |
