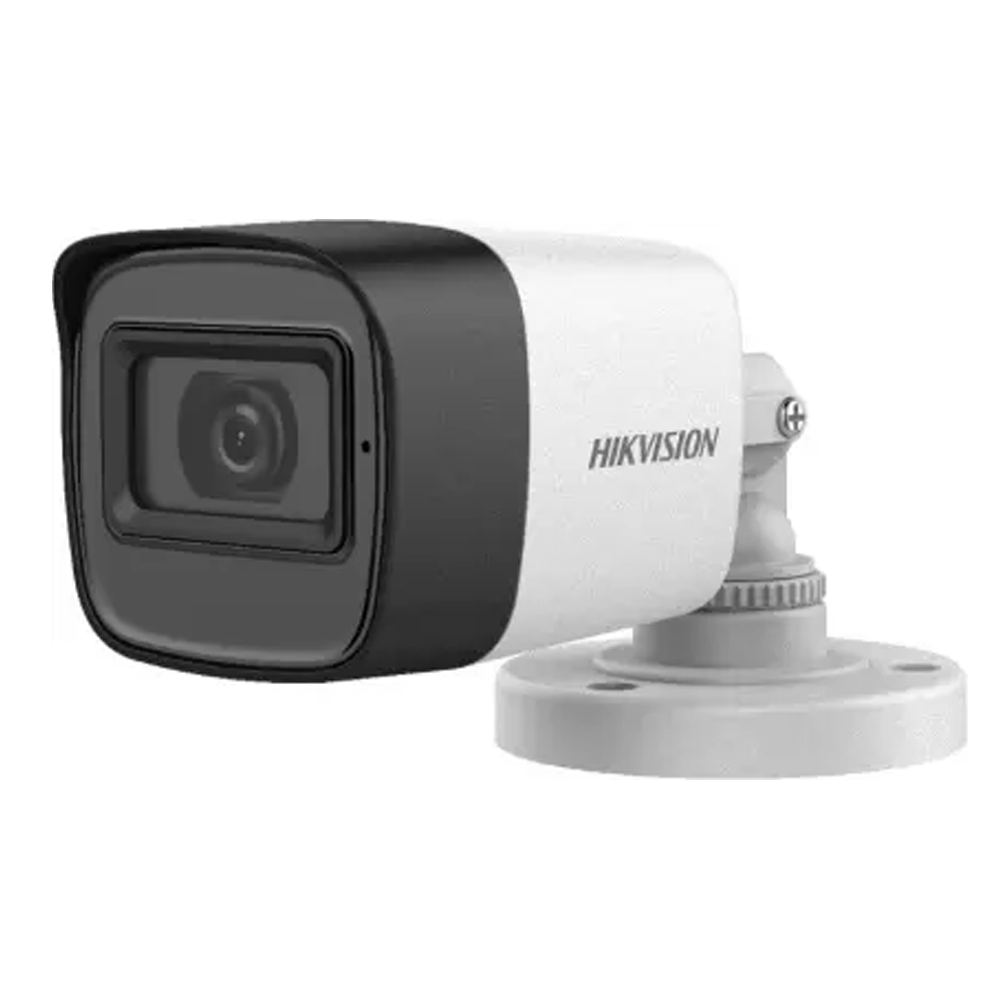

Description
- 2 megapixel high-performance CMOS
- Analog HD output, up to HD1080p resolution
- Day/Night switch
- DNR
- Smart IR
- Up to 30 m IR distance
- Switchable TVI/AHD/CVI/CVBS
- IP67
- Metal Body
Specification
Technical Specifications
| Lens Mount | M12 |
| Angle of view | 70.9° |
| Lens | 3.6 mm |
| Brand | Hikvision |
| Shutter Time | PAL: 1/25 to 1/50,000 sec NTSC: 1/30 to 1/50,000 sec |
| Day & Night | ICR |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360° |
| Min. illumination | 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Model Name | 3.6mm HD1080p IR 2 MP Audio Fixed Mini Bullet Camera |
| Model No | DS-2CE16D0T-ITFS |
| Synchronization | Internal synchronization |
| Video Frame Rate | 1080P@30fps, 1080P@25fps |
| Switch Button | TVI/AHD/CVI/CVBS |
| HD Video Output | 1 Analog FHD output |
| S/N Ratio | 62dB |
| Effective Pixels | 1920 (H) × 1080 (V) |
| Image Sensor | 2 MP CMOS image sensor |
| Appearance | Bullet |
| Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensation) |
| Power Supply | 12 V DC±15% |
| Power Consumption | Max. 3.7 W |
| Protection Level | IP67 |
| IR Range | Up to 30 m |
| Communication | HIKVISION-C |
| Dimensions | 58 mm × 61 mm × 158.6 mm (2.28 × 2.40 × 6.42) |
| Weight | 292 g (0.64 lb.) |
